IBC Cleaning

Hygienic, automatic, reliable.

A hygienically designed IBC system enables faster machinery cleaning.

IBC Cleaning Systems - The Benefits

Maximize production time and reduce downtime by cleaning IBCs off-line with a safe, repeatable washing sequence.

A range of washing solutions are available from manual to fully automatic and air-wash to wet-wash.

Contact Our Team

Air washing module for cleaning ibcs

Wet Wash Module

Providing a comprehensive internal wash and dry of the IBC without the need to remove the Cone Valve.

A high-pressure spray lance distributes water in a controlled and repeatable pattern on all of the internal surfaces of the IBC to remove any powder residue.

The drainage frame includes a cone lifter for automatic cleaning of the outlet with the Cone Valve in situ.

Brochure

Jump to next product

Features at a glance

  • Automatic operation with high-pressure spray lance.

  • Automatic lid placement.

  • Drainage frame incorporating a cone lifter.

  • Optional service skid with heater & chemical dosing.

  • Repeatable & validatable process.

Significantly reduce your cleaning downtime

  • Typical wash and dry cycle only 20-30 minutes (product dependent).

  • High manufacturing efficiency rates as IBCs are cleaned off-line without causing mixer or manufacturing line down-time.

  • Simple IBC design enables easy cleaning of the internal surfaces with no risk of cross-contamination.

  • Safe, repeatable wash sequences which can be validated for Regulatory Authorities.

  • Effective IBC cleaning.



Air washing module for cleaning ibcs

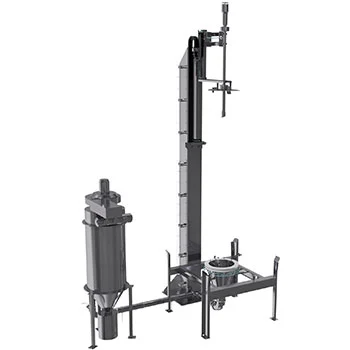

Air Wash Module

Providing a complete inside wash and dry of the IBC without the need to remove the Cone Valve.

Pressurized air is supplied through a lance and nozzle arrangement to expel any particles of powder dust and residue.

Using only air removes the risk of waterborne bacterial growth associated with traditional water-based systems.

Particularly valuable in applications handling dairy or infant nutrition powders.

Any residual powder waste is collected by a dust extraction unit.

Download the Brochure



Jump to previous product

Features at a glance

  • Automatic operation with high-pressure spray lance (no need for detergents, hot water or hot air).

  • Automatic lid placement.

  • Frame incorporating a cone lifter.

  • Residual powder collected via dust extraction unit.

  • Repeatable and validatable process.

Effective washing for cleaning validation

  • Typical air wash cycle only 6-10 minutes (product dependent).

  • No requirement for detergents, hot water or hot air.

  • Air wash capability removes the risk of waterborne bacterial growth, particularly useful in dairy and infant nutrition powder applications.

  • High manufacturing efficiency rates as IBCs are cleaned off-line without causing mixer or manufacturing line down-time.

  • Simple IBC design enables easy cleaning of the internal surfaces with no risk of cross-contamination.

  • Safe, repeatable wash sequences which can be validated for Regulatory Authorities.



Tab Four Title

Wet-Wash-Lance

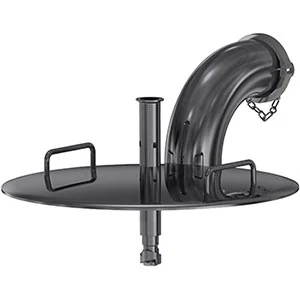

Wash Lance

The easiest of cleaning mechanisms, the wash lance arrangement is manually fitted onto the IBC lid.

High-pressure jets spray water in a controlled and repeatable pattern on all of the internal surfaces of the IBC to remove any powder residue.

Go to the top of the page

Features at a glance

  • High-pressure spray lance arrangement.

  • Cleans IBC internal surfaces.

  • Manual operation.

Significantly reduce your cleaning downtime

  • High manufacturing efficiency rates as IBCs are cleaned off-line without causing mixer or manufacturing line down-time.

  • Simple IBC design enables easy cleaning of the internal surfaces with no risk of cross-contamination.

  • Safe, repeatable wash sequences which can be validated for Regulatory Authorities.

IBC Washing - clean and simple

When it comes to cleaning powder residue off the surface of a Matcon IBC, our range of IBC wet wash equipment starts with the manually placed wash lance.

This unit provides the same washing performance and coverage as the lance on our larger automatic washing system however this device requires operators to remove the IBC Cone Valve from the IBC and manually locate the wash lance on the inlet of the IBC, thus requires more manual intervention than a fully automated system.

The wash lance arrangement is suitable for food applications as well as industrial markets such a metal powders and chemicals.

View the Matcon IBC Cleaning Brochure

Manual to fully automatic solutions, air-wash to wet-wash.

Eliminate cleaning downtime and maximize production capacity.

Download the Brochure

Featured Resources

Expert Cleaning Advice and Opinions

Discover Matcon's latest powder and bulk material handling insights, technical videos and manufacturing best practices.

How to achieve high hygiene standards

See how to reduce the burden of cleaning without compromising on high hygiene standards.

Download

IBC Wet Wash System

IBC cleaning equipment is available from simple manual wash lance arrangements spraying the internal surfaces of the IBC.

View All Videos

What a Food Manufacturer Could do Instead of Time Spent Cleaning

12 September 2019

The cleaning of equipment and facilities is an essential task for any food..

Matcon Product Range

Materials Handling Equipment

Using  Intermediate Bulk Containers (IBCs) to transport powders between manufacturing steps and to blend powders to a homogenous mix.

IBCs

Matcon IBCs are efficient, dust-tight powder containers, manufactured to the highest standards for all industry applications.

Learn More

Formulate

Formulate powder recipes directly to IBCs with accurate, automated filling and add into your batch processing flow as required.

Learn More

Blend

Mix powder recipes of all sizes any time using an IBC Tumble Blender. Improve loading times, cleaning and remove bottlenecks.

Learn More

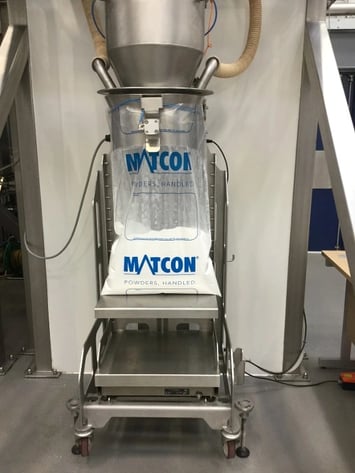

Pack
